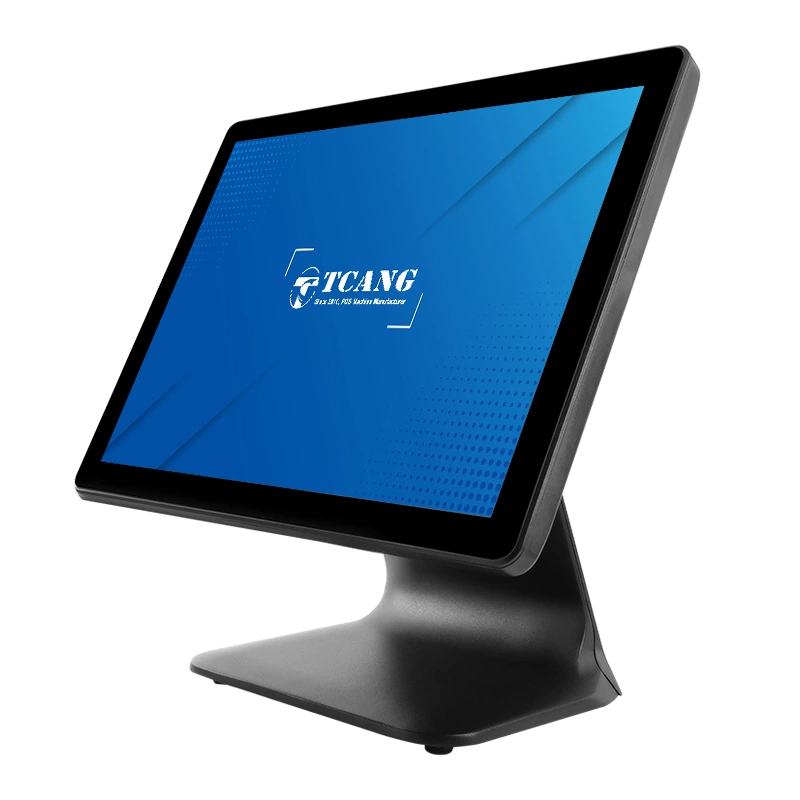

TC-TOUCH-A8III——15 inch Cash Register Machine
Description
15 inch Cash Register Machine
PERFORMANCE :
Android 9/11 :RK3288: Quad core 1.8GB /RK3568: Quad-core Cortex-A55 up to 2.0GHz
Windows:J1900：: Quad core 2.0GHz / J4125: Quad core 2.0GHz/J6412：: Quad core 2.0GHz (support Core i3/ i5/ i7 CPU)
Arbitrarily choose the appropriate configuration，Support OS: Windows, Android, Linux
EASY TO HANDLE:
Fashionable design. Light body, save rooms. Aluminum metal housing。15Inch multi touch display Lightweight, Easy to change customer display without screwdriver. Easy to install MSR and other accessories.Easy to replace 2.5″ hard disk without opening the whole machine.IO panel is on the top. Stand hide all the cables.
Applications:Cash Register Machine
High standard of waterproof and dustproof (IP54)，Highly functional forSupermarkets, hospitals, hotels, convenience stores, clothing stores, bars, coffee shops, etc., food delivery, digital payment, queue management, remote ordering, discount barcode coupons and much more.Suit for different working environment
Specification of Cash Register Machine
| Model Name | Android | Windows |
| CPU | RK3288: Quad core 1.8GB RK3568: Quad-core Cortex-A55 up to 2.0GHz |
J1900：: Quad core 2.0GHz J4125: Quad core 2.0GHz J6412：: Quad core 2.0GHz (support Core i3/ i5/ i7 CPU) |
| OS Support | RK3288: Android 9.0 RK3568: Android 11 |
Windows 7/ 10/11, Linux |
| Display | 15″ LED | 15″ LED |
| Brightness | 350 nits | 350 nits |
| Resolution | 1024 x 768 | 1024 x 768 |
| Touch Screen | Capacitive touch screen | Capacitive touch screen |
| Tilting Angle | 35-90 Degree | 35-90 Degree |
| RAM | 2G | 4G/ 8G |
| SSD | 16G Cash Register Machine | mSATA 64G/ 128G/ 256G SSD SATA 2.5″ 64G/ 128G/ 256G SSD |
| SATA Slot | 1 x mSATA Slot | 1 x mSATA Slot |
| Serial | 2 x COM with Power Selected 5/12V (COM 2/3), Selected by Jumper, 1 x COM without Power Output (COM 1),COM 2 is Customer Display |
2 x COM with Power Selected 5/12V (COM 2/3), Selected by Jumper, 1 x COM without Power Output (COM 1),COM 2 is Customer Display |
| USB | 6 x USB 2.0 (External), 2 x USB 2.0 (Internal, reserved for touch screen,MSR) |
6 x USB 2.0 (External), 2 x USB 2.0 (Internal, reserved for touch screen,MSR) |
| LAN | 1 x RJ-45, Giga LAN, 100 Self-adaption | 1 x RJ-45, Giga LAN, 100 Self-adaption |
| VGA | 1 x DB-15, Female | 1 x DB-15, Female |
| DC | 1 x +12V 5A | 1 x +12V 5A |
| DC Out | 1 x +12V DC Jack (Customer Display or 2nd Display) | 1 x +12V DC Jack (Customer Display or 2nd Display) |
| Audio Jack | 1 x Line Out, 1 x MIC In,1 x Internal Speaker | 1 x Line Out, 1 x MIC In,1 x Internal Speaker |

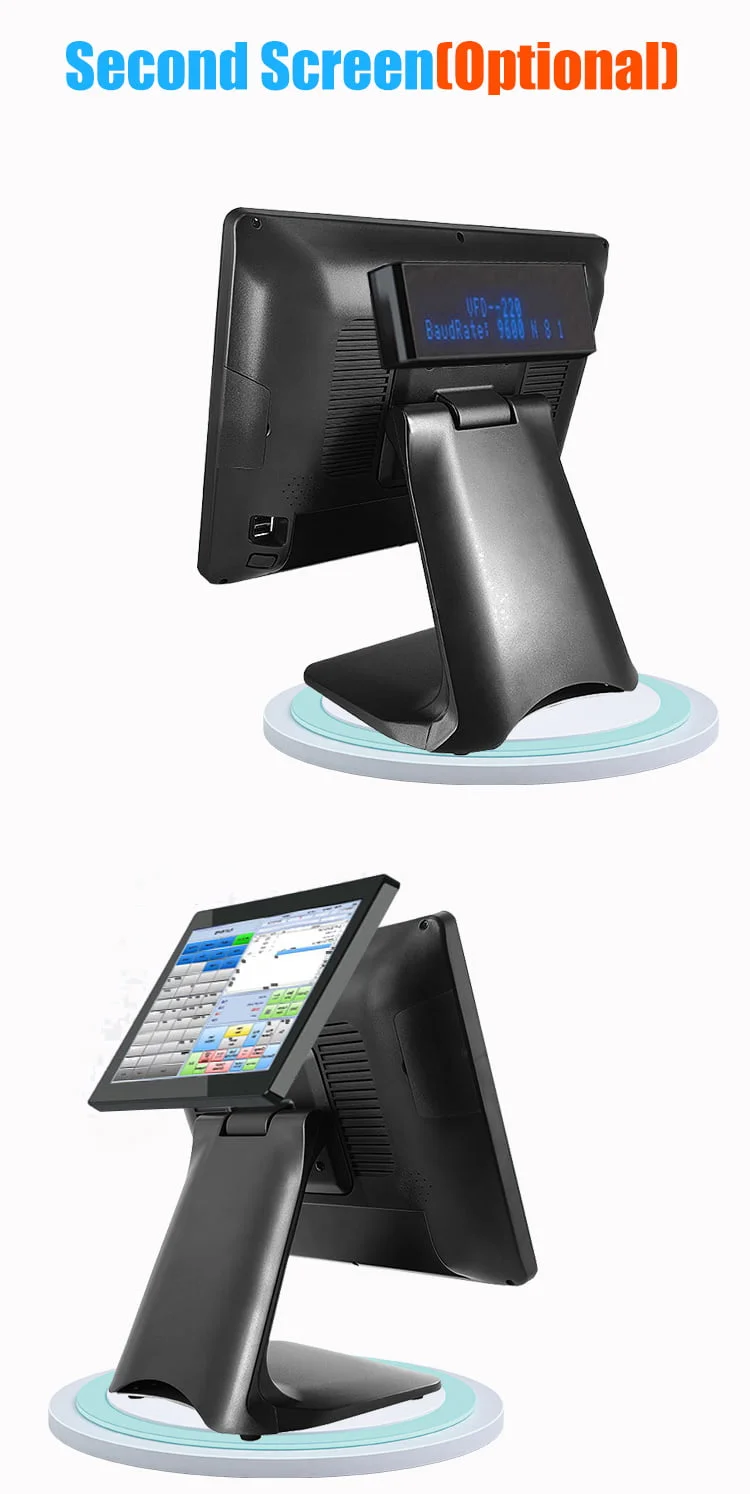

| Optional | MSR, WIFI, Ibutton, Speaker, Fingerprint reader, RFID (only read/ read+write), 2*20 LCD customer display, 2*20 VFD customer display, 10.1 inch customer display (1280*800) |
MSR, WIFI, Ibutton, Speaker, Fingerprint reader, RFID (only read/ read+write), 2*20 LCD customer display, 2*20 VFD customer display, 10.1 inch customer display (1280*800) |
| Packing size | 42.5*40.5*26 cm | 42.5*40.5*26 cm |
| Volumn weight | 12 kg | 12 kg Cash Register Machine |
Additional information
| Color | Black |
|---|---|
| LCD Panel Resolution | 1024*768 |
| LCD panel size | 15 inch |
| Model | TC-TOUCH-A8II |
| Operation System | Windows OS |
