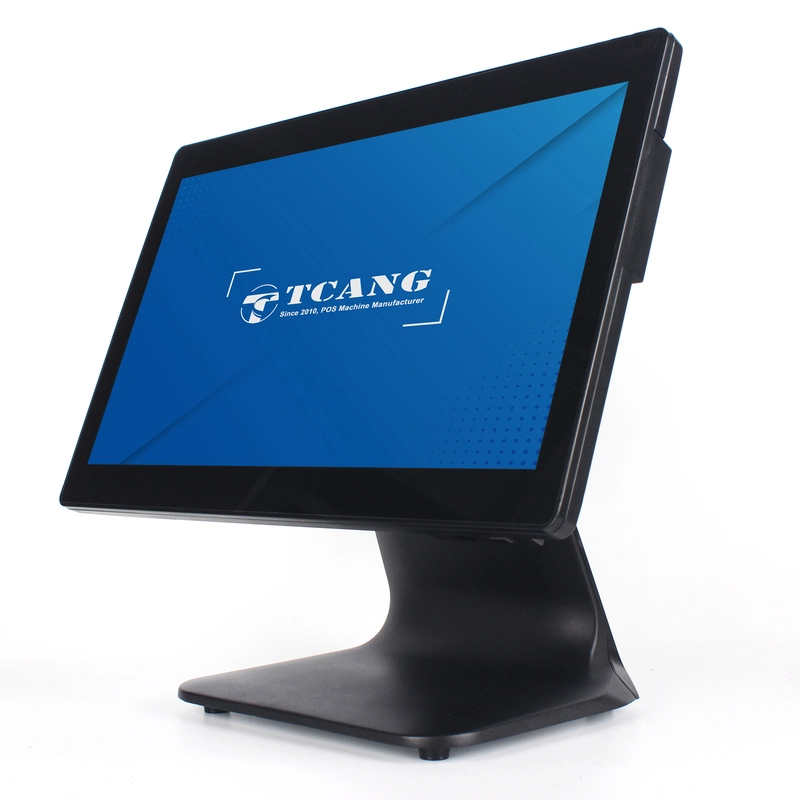

TC-TOUCH-A9——15.6 Inch Dual Screen Cash Register

Home » PRODUCTS » TC-TOUCH-A9——15.6 Inch Dual Screen Cash Register
15.6 inch touch screen cash register
A9 point of sale IO panel

TC-TOUCH-A9——15.6 Inch Dual Screen Cash Register

<strong>Please Feel free to give your inquiry in fhe form below. We wiil reply you in 8 hours</strong>

    Category:

    Description

    15.6 Inch Dual Screen Cash Register

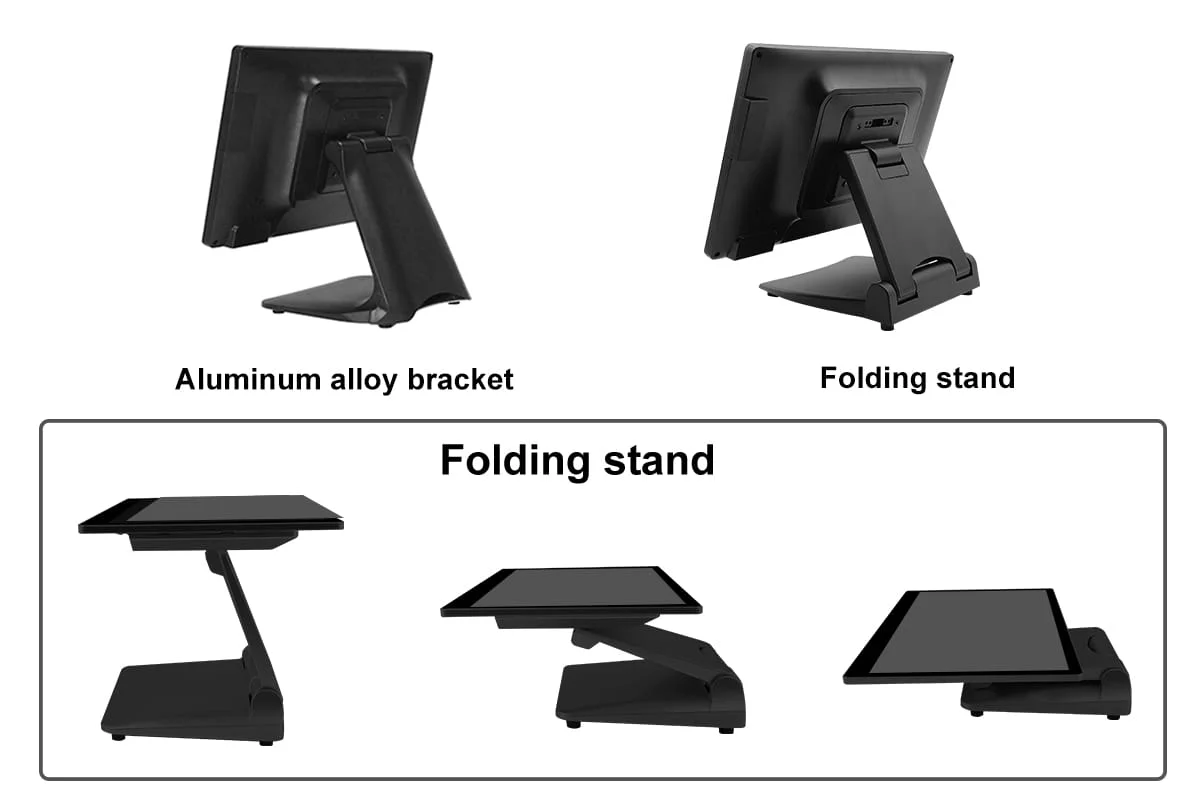

    Aluminum base design, simple and stylish

    • The bracket material of Windows POS machine is aluminum alloy.
    • Stand back cover can hide the wire.
    • Can print logo, pattern on POS machine bracket.

    cash register machine Screen

    • POS machine Main Screen: 15.6 inch HD Large Touch Screen
    • Resolution: 1366* 768 or 1920*1080P
    • Advantage: Capacitive multi-touch screen, excellent operating experience. Higher image quality and longer life.

    Easy to install and use MSR

    • The MSR on the side of the POS saves space and is easy to use. No need to install MSR separately, just one device can be completed.

    Applications

    • High standard of waterproof and dustproof (IP54)，Highly functional forSupermarkets, hospitals, hotels, convenience stores, clothing stores, bars, coffee shops, etc., food delivery, digital payment, queue management, remote ordering, discount barcode coupons and much more.Suit for different working environment

    TC-TOUCH-A9 Dual Screen cash register machine

    Dual Screen Cash Register

    Dual Screen Cash Register

    Dual Screen Cash Register Dual Screen Cash Register

    Dual Screen Cash Register





    Specifications of Dual Screen Cash Register

    Main BoardAndroidWindows
    CPURK3288: Quad core 1.8GB
    RK3568: Quad-core Cortex-A55 up to 2.0GHz    		J1900：: Quad core 2.0GHz
    J4125: Quad core 2.0GHz
    J6412：: Quad core 2.0GHz
    (support Core i3/ i5/ i7 CPU)
    OS SupportRK3288: Android 9.0
    RK3568: Android 11    		Windows 7/ 10/11, Linux
    Display15.6″ LED TFT15.6″ LED TFT
    Brightness250 nits250 nits
    Resolution1366*768 (Option: 1920*1080P)1366*768 (Option: 1920*1080P)
    Touch ScreenCapacitive touch screenCapacitive touch screen
    Tilting Angle35-90 Degree35-90 Degree
    RAM2G4G/ 8G
    SSD16GmSATA 64G/ 128G/ 256G SSD
    SATA SlotNo1 x mSATA Slot
    Serial1x COM1 x COM
    USB5 x USB 2.0 (External),
    2 x USB 2.0 (Internal, reserved for touch screen,MSR)    		5 x USB 2.0 (External),
    2 x USB 2.0 (Internal, reserved for touch screen,MSR)
    LAN1 x RJ-45, Giga LAN, 100 Self-adaption
    1 x RJ11    		1 x RJ-45, Giga LAN, 100 Self-adaption
    VGANo1 x DB-15, Female
    DC1 x +12V 5A1 x +12V 5A
    Audio Jack1 x Line Out, 1 x MIC In,1 x Internal Speaker1 x Line Out, 1 x MIC In,1 x Internal Speaker
    WifiIEEE802.11b/g(option)
    Card slot1 x SIM card
    1 x TF card    		No

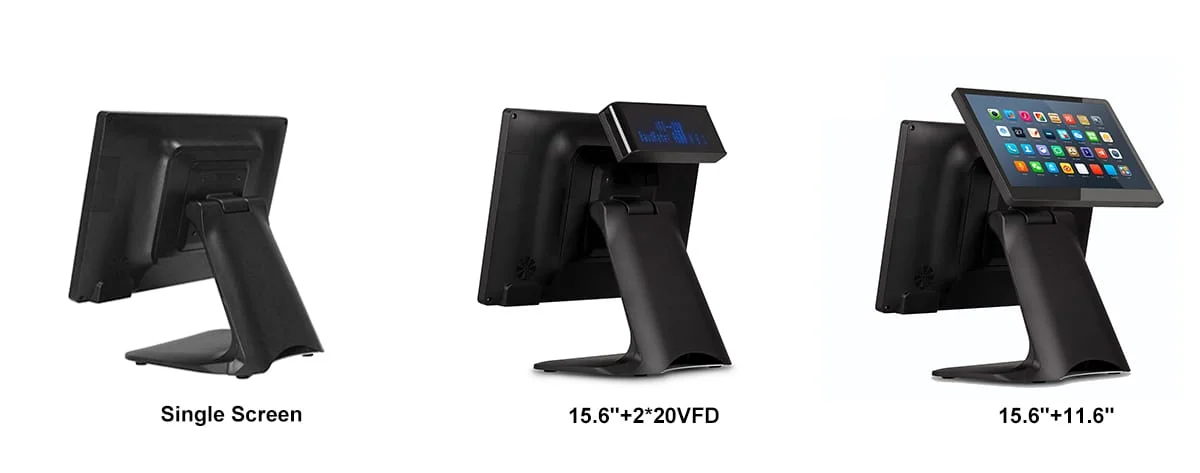

    OptionalMSR,
    Ibutton,
    Speaker,
    Fingerprint reader,
    RFID (only read/ read+write),
    2*20 LCD customer display,
    2*20 VFD customer display,
    11.6 inch customer display (1366*768),
    15.6 inch customer display (1366*768)    		MSR,
    WIFI,
    Ibutton,
    Speaker,
    Fingerprint reader,
    RFID (only read/ read+write),
    2*20 LCD customer display,
    2*20 VFD customer display,
    11.6 inch customer display (1366*768),
    15.6 inch customer display (1366*768)

    Additional information

    Color

    Black

    LCD Panel Resolution

    1366*768 or 1920*1080P

    LCD panel size

    15.6inch

    Model

    TC-TOUCH-A9

    Operation System

    Android/Windowns
