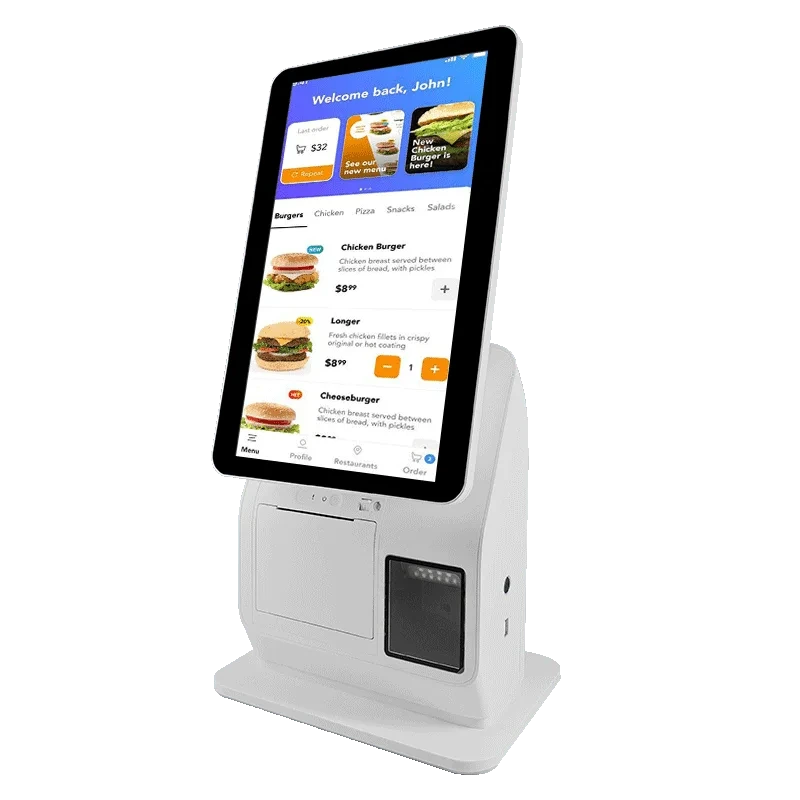

TC-TOUCH-K12——15.6 Inch Touch Screen Self-service Kiosk

Please feel free to give your inquiry in the form below. We will reply you in 8 hours.

Data Sheet

15.6 Inch Touch Screen Self-service Kiosk

With the new 2024 high-performance Intel processors, POS hardware can be seamlessly integrated with a range of Intel’s latest chips, boosting performance and effectively supporting today’s demanding POS applications.

Windows-J6412

Android-RK3568

Adjustable Viewing Angle

0°-23° Flexibility for Optimal Usage

10-Point True Flat Capacitive Touch Screen

Experience precise multi-touch functionality with exceptional brightness and durability.

Revolutionize Your Printing with Enhanced Efficiency

The equipment usesan 80mm thermal printer. The fastest printing speed is 180mm/s,and which can support in queuing peak hours.

Easy Replacement of Thermal Printer

Seamless maintenance for uninterrupted service.

Non-contact code scanning

Scanning the product code can directly display the product information

Can be linked with handheld POS

White

Black

Black and White

Product size

Reasonable design provides a more aesthetic and practical experience

Versatile Installation Options

Wall Mount, Desktop, and Floor Stand touch screen self-service kiosks

Specifications
　 lntel@ Core J6412 RK 3568
CPU Quad-core Max Turbo 2.60 GHz 4 x Cortex-A55,2.0GHz
OS Windows10/11/ Linux Android 11/Android13
Memory 4GB DDR4 2666MHz1 x SO-DIMM slot up to 8GB/16G 2G/4G/8G
SSD M.2/MSATA/SATA 128GB / 256 GB/ 512GB / 1TB SSD 32G/64G/128G
Size/Resolution 15.6″ TFT-L ED/1366*768 OR 1920*1080
Touch Screen True-flat Capacitive Touch Sreen
Wireless Module Intel 802.1 1 a / b / g/ n / ac++ BT5.0 AIC8000D 5GWIFI BT5.0
Printer 80mm thermal receipt printer，Printing Speed 200mm/s,Work Life 100 km,Cutter Life 1,000,000 times,
Paper Roll: Max Diameter 80mm
1/O port RJ11 x 1,Rj45 x 1,USB3.0 x 4, USB2.0 x 1,DC-in x 1.COM x 1, HDMI x1 ,Audio x 1，VGAx 1 SIMSlot x 1,USB3.0 x 2,TFSlot x1，COM x1,USB2.0 x 2,Rj45 x 1,RJ11x 1，DC-in x 1，Audio x1
Carton Size(mm) 360mm(L) × 320mm(W) × 670mm(H)
G.W. 15.5kg
Optional
Card Reader MSR /RFID (only read/ read+write)
WIFI Option
