TC-TOUCH-A9S——15.6 inches Ultra-thin touch screen pos systems
Description
Introducing TC- TOUCH-A9S, a sleek and versatile touch screen POS systems featuring an ultra-thin, foldable design. Crafted with an aluminum alloy back for optimal heat dissipation, it combines style and functionality. Compatible with both Windows and Android platforms, this powerful POS machine is a top choice for businesses seeking efficiency and reliability.
The ultra-slim design of our touch screen, featuring a remarkable 13mm narrow edge and a thickness of just 7mm.
—thinner than most smartphones.
Easily replace memory and hard disk
Fanless Motherboard More Quite
fast heat disspation with strong cooling system
Easy installation of the secondary screen
No need to open the housing, only Type-C to connect the secondary screen
2*20VFD
11.6′ guest display
Mobile screen
Fix the MSR on the screen and plug it into the USB port to use it
Optional: MSR, MSR+RFID, Ibutton+fingerprint, MSR+RFID+Ibutton+fingerprint
Installation of facial recognition
Hidden wire cover design

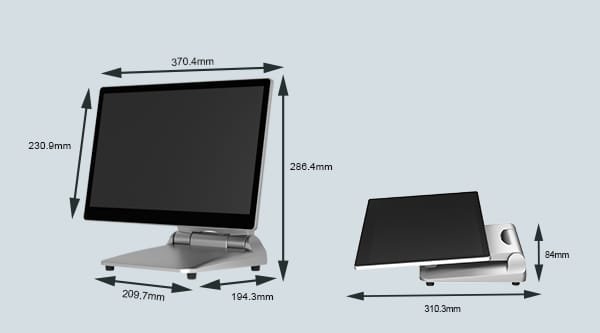

Size
Android
Windows
| Specifications | ||||||
| lntel@ Processor N95 | lntel@ Processor N97 | Intel ® CoRE ™ I3-N300 | Intel® Core™ i5-1235U | lntel@ Core J6412 | Rockchip@ RK3568B2 | |
| CPU | Qua d core 1.7GHZ~3.4GHZ | Quad-core,3.6GHz, TDP 12W | Eight core，3.8GHZ | Ten cores and twelve threads，1.3GHZ | Octa-core,3.8GHz,TDP 15W | 4 x Cortex-A55,2.0GHz |
| OS | Windows10/11/ Linux | Android 11/Android13 | ||||
| Memory | 4GB DDR4 2666MHz1 x SO-DIMM slot up to 8GB/16G | 2G/4G/8G | ||||
| SSD | M.2 NVME 128 / 256 / 512GB / 1TB SSD | 8G/16G/32G | ||||
| Size/Resolution | 15.6″ TFT-L ED/1366*768 OR 1920*1080 | |||||
| Touch Screen | True-flat Capacitive Touch Sreen | |||||
| Card Reader | MSR | |||||
| Customer Display | VFD (2 x 20 Digits) | |||||
| 2nd Display | 11.6″ True-flat LED monitor /15.6″ True-flat LED monitor | |||||
| Wireless Module | Intel 802.1 1 a / b / g/ n / ac++ BT5.0 | AIC8000D 5GWIFI BT5.0 | ||||
| 1/O port | Type C x 1 (1 x edp monitor),RJ11 x 1,Rj45 x 1,USB3.0 x 2, USB2.0 x 4,DC-in x 1，RJ48 x 2, HDMI x1 ,Audio x 1 | Type C x 1(1 x edp monitor),SIMSlot x 1,USB3.0 x 2,TFSlot x1，COM x1，USB2.0 x 2,Rj45 x 1,RJ11x 1，DC-in x 1，Audio x1 | ||||
| Carton Size(mm) | 430mm(L) × 190mm(W) × 430mm(H) | |||||
| G.W. | 7.2kgs | |||||
