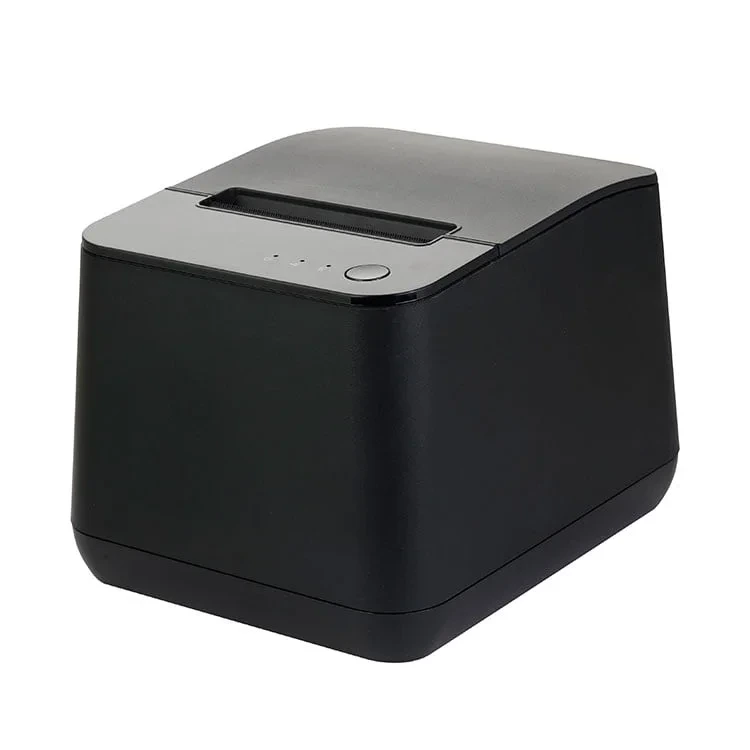

TC-T836L——80MM mini portable printer

Description

80MM mini portable printer

Specifications of mini portable printer

Print
Model	T836L
Printing method	Direct line type thermal
Printing speed	160mm/s.200mm/s, triple interface 260mm/s
Print width	72mm
Paper roll width	79.5 main 0.5mm 80mm
Black mark positioning	Support
Paper thickness	0.06-0.08mm
Print density	576 dots/line or 512 dots/line
Paper output method	Upper paper output
Character size	ANK character,FontA: 1.5×3.0mm FontB: 1.1×2.1mm Simplified/Traditional:3.0×3.0mm
Line spacing	3.75mm (can be adjusted by command)
Paper presence detection	Photoelectric sensor
Interface Type	USB, Network port, USB+Network port, USB+Serial port, USB+Bluetooth/WIFI(optional), Serial+USB+Network port
Bar code character
Bar Code Type	1D code:UPC-A/UPC-E/JAN13 (EAN13)/JAN8 “EAN8)/CODE39/ITF/CODABAR/CODE93/cODE128 QR CODE: Note: USB, USB + serial port, USB + Bluetooth / WIFI does not support the QR CODE network port.
Extended character table	PC347 (Standard Europe) . Katakana, PC850 (Multilingual) .PC860 (Portuguese) . PC863 (Canadian-French) . PC865 (Nordic).West Europe.Greece, Hebrew.East Europe.Iran.wPC1252, PC866 (Cyrillic#2) . PC852 (Latin2) . PC858.’Iranll, Latvian, Arabic.PT151 (1251)
Buffer
NV FLASH Buffer	256K Bytes
Input Buffer	USB, USB+Serial, USB+Bluetooth/WIFI: 128Kbytes Net, USB+Net, Triple Interface:256Kbytes
Power supply
Adapter Voltage Input	Ac 100-240V/50~60Hz,1.5A
Adapter Voltage Output	DC 24V/2.5A
Money box control	DC 24V/1A
Cutter
Automatic cutter	Half cut
Life
Reliability	Movement life 150 km, cutter life 1.5 million times
Environmental requirements
Working Environment	Temperature:0~45℃,Humidity:10~80%(no frost)
Storage environment	Temperature:-10~60°℃, Humidity:10~90%
Environment command
Operating Environment	windows/Linux
Print command	Compatible with ESC/POS command
Physical Characteristics
Weight	0.92kg(without paper roll)
External Dimensions	18Omm×145mm×127mm(L×W×H)
